RayCast Sensor#

The RayCast sensor provides GPU-accelerated raycasting for terrain scanning, obstacle detection, and depth sensing. It supports flexible ray patterns, multiple frame attachment options, and configurable alignment modes.

Quick Start#

from mjlab.sensor import RayCastSensorCfg, GridPatternCfg, ObjRef

raycast_cfg = RayCastSensorCfg(
  name="terrain_scan",
  frame=ObjRef(type="body", name="base", entity="robot"),
  pattern=GridPatternCfg(size=(1.0, 1.0), resolution=0.1),
  max_distance=5.0,
)

scene_cfg = SceneCfg(
  entities={"robot": robot_cfg},
  sensors=(raycast_cfg,),
)

# Access at runtime.
sensor = env.scene["terrain_scan"]
data = sensor.data
distances = data.distances      # [B, N] distance to hit, -1 if miss
hit_pos = data.hit_pos_w        # [B, N, 3] world-space hit positions
normals = data.normals_w        # [B, N, 3] surface normals

Ray Patterns#

Ray patterns define the spatial distribution and direction of rays emitted from the sensor frame. Two pattern types are available for different use cases.

Grid Pattern#

Parallel rays arranged in a 2D grid with fixed spatial resolution.

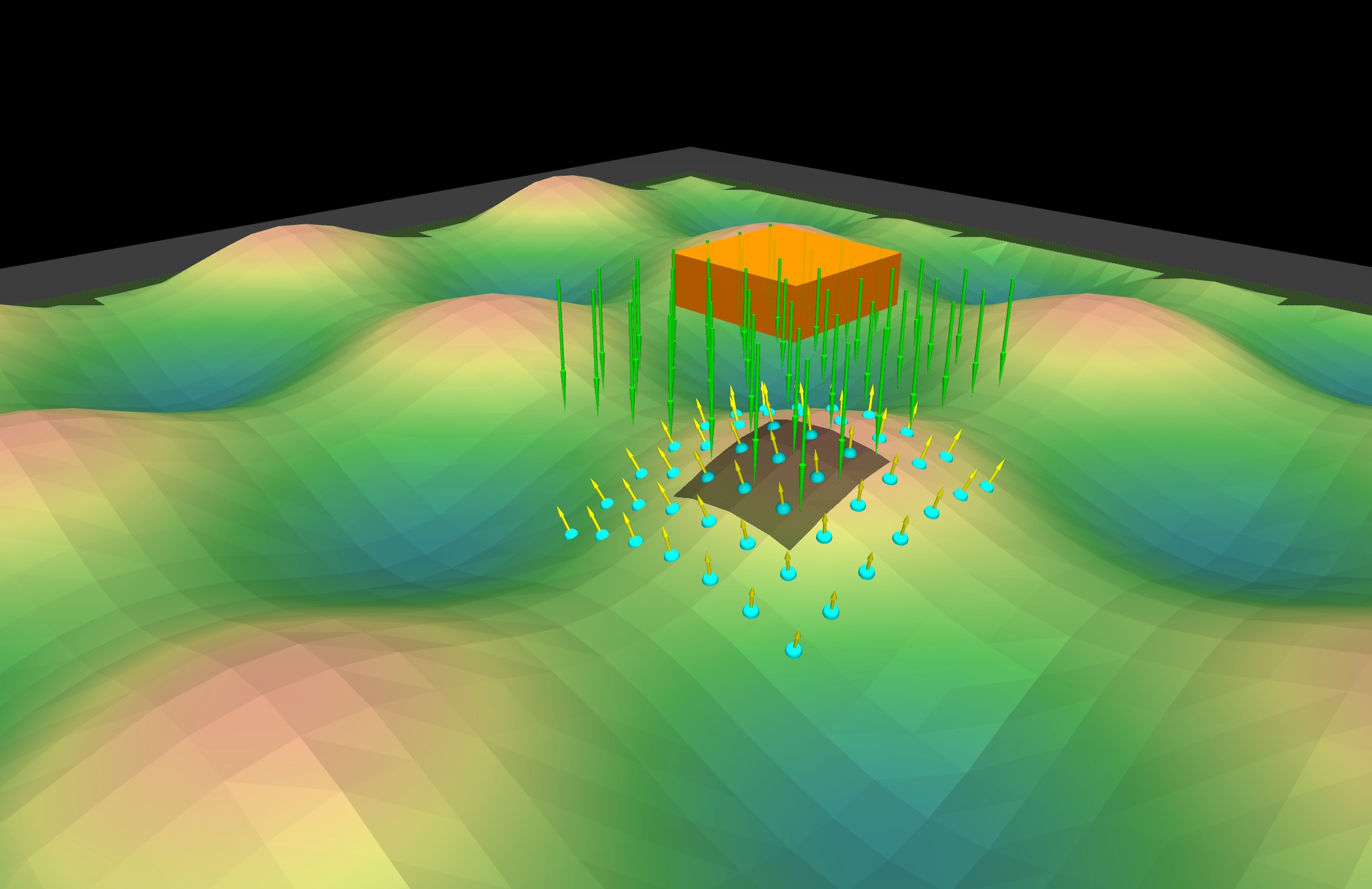

Parallel grid ray pattern with fixed footprint

Note

The grid pattern produces a fixed ground footprint that does not change with sensor height. Ray spacing is defined in world units (meters).

from mjlab.sensor import GridPatternCfg

pattern = GridPatternCfg(
  size=(1.0, 1.0),              # Grid dimensions in meters
  resolution=0.1,               # Spacing between rays
  direction=(0.0, 0.0, -1.0),   # Ray direction (down)
)

Characteristics:

  • All rays are parallel

  • Spacing defined in meters

  • Ground footprint is height-invariant

  • Good for: height maps, terrain scanning, spatially uniform sampling

Pinhole Camera Pattern#

Diverging rays emitted from a single origin, analogous to a depth camera or LiDAR sensor.

Note

Unlike the grid pattern, the pinhole pattern has a fixed angular field of view. As the sensor moves higher, the ground coverage increases.

from mjlab.sensor import PinholeCameraPatternCfg

# Explicit parameters.
pattern = PinholeCameraPatternCfg(
  width=16,
  height=12,
  fovy=45.0,  # Vertical FOV in degrees
)

# From a MuJoCo camera.
pattern = PinholeCameraPatternCfg.from_mujoco_camera("robot/depth_cam")

# From intrinsic matrix.
pattern = PinholeCameraPatternCfg.from_intrinsic_matrix(
  intrinsic_matrix=[500, 0, 320, 0, 500, 240, 0, 0, 1],
  width=640,
  height=480,
)

Characteristics:

  • Rays diverge from a single point

  • Coverage defined in angular units (degrees)

  • Ground footprint increases with height

  • Good for: depth cameras, LiDAR, perspective sensing

Pattern Comparison#

Aspect

Grid

Pinhole

Ray direction

Parallel

Diverging

Spacing unit

Meters

Degrees (FOV)

Height affects coverage

No

Yes

Projection model

Orthographic

Perspective

Frame Attachment#

Rays attach to a frame in the scene via ObjRef.

frame = ObjRef(type="body", name="base", entity="robot")
frame = ObjRef(type="site", name="scan_site", entity="robot")
frame = ObjRef(type="geom", name="sensor_mount", entity="robot")

The exclude_parent_body option (default: True) prevents rays from hitting the body to which they are attached.

Ray Alignment#

The ray_alignment setting controls how rays orient relative to the frame when the body rotates.

Mode

Description

Use Case

"base"

Full position and rotation

Body-mounted sensors

"yaw"

Ignores pitch and roll

Terrain height maps

"world"

Fixed world direction

Gravity-aligned sensing


RayCastSensorCfg(
  name="height_scan",
  frame=ObjRef(type="body", name="base", entity="robot"),
  pattern=GridPatternCfg(size=(1.0, 1.0), resolution=0.1),
  ray_alignment="yaw",
)

Geom Group Filtering#

MuJoCo geoms can be assigned to groups 0-5. Use include_geom_groups to restrict which geoms rays can hit.

RayCastSensorCfg(
  name="terrain_only",
  frame=ObjRef(type="body", name="base", entity="robot"),
  pattern=GridPatternCfg(),
  include_geom_groups=(0, 1),
)

Output Data#

The sensor returns RayCastData:

@dataclass
class RayCastData:
  distances: Tensor   # [B, N] distance to hit, -1 if miss
  hit_pos_w: Tensor   # [B, N, 3] world-space hit positions
  normals_w: Tensor   # [B, N, 3] surface normals
  pos_w: Tensor       # [B, 3] sensor frame position
  quat_w: Tensor      # [B, 4] sensor frame orientation (w, x, y, z)

B is the number of environments and N is the number of rays.

Debug Visualization#

Enable visualization with debug_vis=True:

RayCastSensorCfg(
  name="scan",
  frame=ObjRef(type="body", name="base", entity="robot"),
  pattern=GridPatternCfg(),
  debug_vis=True,
)

Examples#

Height Map for Locomotion#

# Dense grid for terrain-aware locomotion.
height_scan = RayCastSensorCfg(
  name="height_scan",
  frame=ObjRef(type="body", name="base", entity="robot"),
  pattern=GridPatternCfg(
    size=(1.6, 1.0),
    resolution=0.1,
    direction=(0.0, 0.0, -1.0),
  ),
  ray_alignment="yaw",  # Stay level on slopes
  max_distance=2.0,
  exclude_parent_body=True,
)

# In observation function.
def height_obs(env: ManagerBasedRlEnv) -> torch.Tensor:
  sensor = env.scene["height_scan"]
  return sensor.data.distances  # [B, N]

Depth Camera Simulation#

# Simulate a depth camera.
depth_cam = RayCastSensorCfg(
  name="depth",
  frame=ObjRef(type="site", name="camera_site", entity="robot"),
  pattern=PinholeCameraPatternCfg.from_mujoco_camera("robot/depth_cam"),
  max_distance=10.0,
)

# Reshape to image.
def depth_image(env: ManagerBasedRlEnv) -> torch.Tensor:
  sensor = env.scene["depth"]
  distances = sensor.data.distances  # [B, W*H]
  return distances.view(-1, 12, 16)  # [B, H, W]

Obstacle Detection#

# Forward-facing obstacle scan.
obstacle_scan = RayCastSensorCfg(
  name="obstacle",
  frame=ObjRef(type="body", name="head", entity="robot"),
  pattern=GridPatternCfg(
    size=(0.5, 0.3),
    resolution=0.1,
    direction=(-1.0, 0.0, 0.0),  # Forward
  ),
  max_distance=3.0,
  include_geom_groups=(0,),  # Filtering to only group 0 geoms
)

Running the Demo#

A demo script is included to visualize the sensor on varied terrain:

# Grid pattern (default)
uv run mjpython scripts/demos/raycast_sensor.py --pattern grid

# Pinhole camera pattern
uv run mjpython scripts/demos/raycast_sensor.py --pattern pinhole

# With yaw alignment
uv run mjpython scripts/demos/raycast_sensor.py --alignment yaw

# Viser viewer (for remote/headless)
uv run python scripts/demos/raycast_sensor.py --viewer viser
