Domain Randomization

Domain randomization varies physical parameters during training so that policies are robust to modeling errors and real-world variation. This guide shows how to attach randomization terms to an environment using EventTermCfg and the dr module.

Quick Start

Use an EventTermCfg that calls a typed function from dr with a value range and an operation describing how to apply the draw.

from mjlab.envs.mdp import dr
from mjlab.managers.event_manager import EventTermCfg
from mjlab.managers.scene_entity_config import SceneEntityCfg

foot_friction: EventTermCfg = EventTermCfg(
    mode="reset",  # randomize each episode
    func=dr.geom_friction,
    params={
        "asset_cfg": SceneEntityCfg("robot", geom_names=[".*_foot.*"]),
        "ranges": (0.3, 1.2),
        "operation": "abs",
    },
)

Each dr function is decorated with @requires_model_fields which automatically tracks the fields that need to be expanded for per-world storage and the RecomputeLevel needed to keep derived quantities consistent.

The mode parameter controls when the event fires:

• "startup" randomizes once at initialization

• "reset" randomizes at every episode reset

• "interval" randomizes at regular time intervals

Available Functions

Model field functions

Each function writes to a single field on sim.model (the MuJoCo Warp model). For example, dr.geom_friction writes to sim.model.geom_friction, dr.body_mass writes to sim.model.body_mass, and so on. Most share the signature (env, env_ids, ranges, ...), with distribution and operation controlling sampling and application (see Parameters). Some functions have a more readable name than the underlying MuJoCo field; in those cases the raw field name is available as an alias (dr.body_com_offset and dr.body_ipos are the same function).

Geom fields

Function	MuJoCo field	Description	Notes
dr.geom_friction	geom_friction	Sliding, torsional, and rolling friction coefficients	Default axis: 0 (tangential only)
dr.geom_pos	geom_pos	Position of the geom in the parent body frame
dr.geom_quat	geom_quat	Orientation of the geom frame	Accepts roll/pitch/yaw ranges (radians); composes with default
dr.geom_rgba	geom_rgba	Color and transparency (RGBA)
dr.geom_size	geom_size	Geom-specific size parameters (radius, half-lengths, etc.)	Automatically recomputes geom_rbound and geom_aabb

Body fields

Function	MuJoCo field	Description	Notes
dr.body_mass	body_mass	Mass of the body	Triggers set_const recomputation
dr.body_com_offset (alias body_ipos)	body_ipos	Center of mass position relative to the body frame	Triggers set_const
dr.body_pos	body_pos	Position of the body frame in the parent frame	Triggers set_const_0
dr.body_quat	body_quat	Orientation of the body frame	Accepts roll/pitch/yaw ranges (radians); composes with default; triggers set_const_0

Joint fields

Function	MuJoCo field	Description	Notes
dr.joint_damping (alias dof_damping)	dof_damping	Velocity-proportional damping force (passive)
dr.joint_armature (alias dof_armature)	dof_armature	Added rotor inertia (models geared transmissions)	Triggers set_const_0
dr.joint_friction (alias dof_frictionloss)	dof_frictionloss	Dry friction loss in the joint
dr.joint_stiffness (alias jnt_stiffness)	jnt_stiffness	Spring stiffness pulling toward the reference position
dr.joint_limits (alias jnt_range)	jnt_range	Lower and upper joint position limits
dr.joint_default_pos (alias qpos0)	qpos0	Reference joint position (zero-spring equilibrium)	Triggers set_const_0

Site fields

Function	MuJoCo field	Description	Notes
dr.site_pos	site_pos	Position of the site frame in the parent body frame
dr.site_quat	site_quat	Orientation of the site frame	Accepts roll/pitch/yaw ranges (radians); composes with default

Camera fields

Function	MuJoCo field	Description	Notes
dr.cam_fovy	cam_fovy	Vertical field of view (degrees)
dr.cam_pos	cam_pos	Camera position in the parent body frame
dr.cam_quat	cam_quat	Camera orientation	Accepts roll/pitch/yaw ranges (radians); composes with default
dr.cam_intrinsic	cam_intrinsic	Focal length and principal point [fx, fy, cx, cy]

Light fields

Function	MuJoCo field	Description	Notes
dr.light_pos	light_pos	Light position in the parent body frame
dr.light_dir	light_dir	Light direction vector

Material fields

Function	MuJoCo field	Description	Notes
dr.mat_rgba	mat_rgba	Material RGBA color (tints textures)

Tendon fields

Function	MuJoCo field	Description	Notes
dr.tendon_damping	tendon_damping	Velocity-proportional damping along the tendon
dr.tendon_stiffness	tendon_stiffness	Spring stiffness along the tendon
dr.tendon_friction (alias tendon_frictionloss)	tendon_frictionloss	Dry friction loss along the tendon
dr.tendon_armature	tendon_armature	Inertia associated with tendon velocity	Triggers set_const_0

Entity-level functions

The functions above all write to a single sim.model field. The functions below operate at the mjlab entity level instead, because they touch multiple model fields at once or modify entity state that doesn’t live on the MuJoCo model.

Function	What it does
dr.pseudo_inertia	Physics-consistent joint randomization of body_mass, body_ipos, body_inertia, and body_iquat via the pseudo-inertia matrix parameterization (Rucker & Wensing 2022). Guarantees a positive-definite inertia tensor and positive mass. See Pseudo-inertia randomization for details.
dr.pd_gains	Randomizes stiffness (kp) and damping (kd) together. For BuiltinPositionActuator and XmlPositionActuator it writes to actuator_gainprm and actuator_biasprm. For IdealPdActuator it sets gains on the entity directly. All three can be wrapped with DelayedActuator.
dr.effort_limits	Randomizes actuator force range (actuator_forcerange). For IdealPdActuator also updates the entity’s internal force limit. Supports BuiltinPositionActuator, XmlPositionActuator, and IdealPdActuator.
dr.encoder_bias	Adds a fixed per-joint bias to position readings, simulating encoder calibration errors. Writes to entity.data.encoder_bias, not the MuJoCo model.
dr.sync_actuator_delays	Samples a single lag value per environment and applies it to all DelayedActuator instances on the entity, ensuring consistent delay across joints.

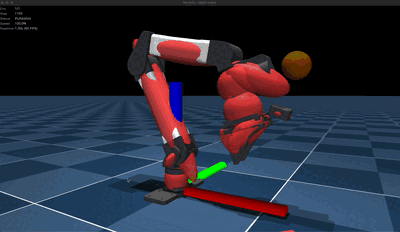

Pseudo-inertia randomization

dr.pseudo_inertia jointly randomizes body_mass, body_ipos, body_inertia, and body_iquat while guaranteeing physical consistency for any perturbation magnitude. Unlike randomizing these fields independently (which can produce negative masses, imaginary principal moments, or triangle-inequality violations), pseudo_inertia parameterizes inertia through the pseudo-inertia matrix \(J \succ 0\) and ensures the result is always physically valid.

The pseudo-inertia matrix \(J\) is a \(4 \times 4\) symmetric positive-definite matrix that encodes mass, center of mass, and the full rotational inertia tensor in a single object:

\[\begin{split}J = \begin{bmatrix} \Sigma & h \\ h^\top & m \end{bmatrix}, \qquad \Sigma = \tfrac{1}{2}\operatorname{tr}(I)\,I_3 - I, \qquad h = m\,c\end{split}\]

where \(m\) is mass (body_mass), \(c\) is the center of mass (body_ipos), \(d\) is the vector of principal inertia moments (body_inertia), and \(I\) is the \(3 \times 3\) inertia tensor at the body-frame origin. The inertia tensor is constructed by rotating the diagonal principal moments into the body frame and applying the parallel-axis theorem:

\[\begin{split}I_{\text{com}} &= V \operatorname{diag}(d)\, V^\top, \qquad V = R(q)^\top \\ I &= I_{\text{com}} + m\bigl(\lVert c \rVert^2 I_3 - c\,c^\top\bigr)\end{split}\]

where \(q\) is the body-to-principal-frame quaternion (body_iquat) and \(R(q)\) is its rotation matrix.

The math follows Rucker & Wensing, “Smooth Parameterization of Rigid-Body Inertia,” IEEE RA-L 2022. \(J\) is factored via Cholesky as \(J = LL^\top\). A perturbation is applied through an upper-triangular matrix \(U\):

\[J' = (UL)(UL)^\top\]

which is guaranteed positive definite for any \(U\). The perturbed inertia tensor is then decomposed back into MuJoCo fields: the inverse parallel-axis theorem shifts \(I\) back to the COM, and eigendecomposition extracts the principal moments (body_inertia) and principal-frame rotation (body_iquat). This is exact for any perturbation magnitude.

The 10 parameters of \(U\) control different physical effects:

Parameter	Physical effect
alpha	Global mass-density log-scale. Mass and all principal inertia moments scale by \(e^{2\alpha}\). Center of mass is unchanged.
d1, d2, d3	Axis-aligned stretch/compress along x, y, z in the inertia frame. Use d_range to set all three to the same range (isotropic).
s12, s13, s23	Shear perturbation in the xy, xz, and yz planes. Redistributes mass asymmetrically; produces off-diagonal inertia contributions.
t1, t2, t3	Shifts the center of mass along x, y, z (body frame). For a pure t1 shift, mass is unchanged and body_ipos[0] shifts by exactly t1. Use t_range to set all three to the same range.

Example

events = {
    # Isotropic mass scaling + small COM variation.
    "body_inertia_dr": EventTermCfg(
        mode="reset",
        func=dr.pseudo_inertia,
        params={
            "asset_cfg": SceneEntityCfg("robot", body_names=["torso"]),
            "alpha_range": (-0.1, 0.1),   # ±10% mass/inertia scaling
            "t_range": (-0.02, 0.02),     # ±2 cm COM shift
        },
    ),
    # Anisotropic stretching (x stiffer than y/z).
    "body_inertia_aniso_dr": EventTermCfg(
        mode="startup",
        func=dr.pseudo_inertia,
        params={
            "asset_cfg": SceneEntityCfg("robot", body_names=[".*"]),
            "alpha_range": (-0.2, 0.2),
            "d1_range": (-0.1, 0.1),
            "d2_range": (-0.3, 0.3),
            "d3_range": (-0.3, 0.3),
        },
    ),
}

Safety of Runtime Model Changes

In C MuJoCo, modifying mjModel fields at runtime can be unsafe: some changes invalidate internal acceleration structures (BVH) or leave derived quantities stale. MuJoCo Warp has a different collision pipeline, so many of these concerns do not apply.

Two architectural differences matter most:

1. No collision BVH. C MuJoCo builds a static bounding-volume hierarchy (BVH) for midphase collision pruning. Changing body_pos/body_quat of a static body invalidates that tree. MuJoCo Warp uses NxN or sweep-and-prune broadphase instead, so there is no static tree to invalidate.

2. Local bounding boxes. geom_aabb in MuJoCo Warp is a local bounding box (center + half-size in the geom frame). The broadphase transforms it to world space every step using geom_xpos/geom_xmat from forward kinematics. In C MuJoCo, the BVH caches world-space bounds, so any change to geom_pos/geom_quat makes them stale.

The table below shows which fields are safe to randomize in mjlab and how that compares to C MuJoCo.

Field(s)	C MuJoCo	mjlab / MuJoCo Warp	Why the difference
body_pos, body_quat	Safe with mj_setConst, but unsafe for static bodies (invalidates midphase BVH)	Safe with set_const_0	No collision BVH to invalidate (see above). Body FK runs for all bodies regardless of body_treeid. See the static-body caveat below.
body_mass, body_inertia, body_ipos, body_iquat	Safe with mj_setConst	Safe with set_const	Same approach. dr.pseudo_inertia jointly randomizes all four while guaranteeing physical consistency.
geom_pos, geom_quat	Unsafe (no mj_setConst support)	Safe for geoms on dynamic bodies	FK recomputes geom_xpos/geom_xmat every step from geom_pos/geom_quat, and local geom_aabb stays valid (see above). See the static-body caveat below.
geom_size	Unsafe	Safe (recomputes bounds automatically)	dr.geom_size recomputes geom_rbound and geom_aabb inline after writing new sizes. Only primitive types (sphere, capsule, ellipsoid, cylinder, box) are supported.
geom_rbound, geom_aabb	Unsafe (internal derived quantities)	Not randomized (derived)	Broadphase acceleration data. Only set once during model loading. Would need recomputation if geom_size changes.
geom_friction, geom_rgba	Safe	Safe	No derived quantities. Contact friction is read directly each step.
dof_armature	Safe with mj_setConst	Safe with set_const_0	Same approach.
dof_damping, dof_frictionloss, jnt_stiffness, jnt_range	Safe	Safe	No derived quantities.
qpos0	Safe with mj_setConst	Safe with set_const_0	Same approach.
tendon_stiffness, tendon_damping, tendon_frictionloss	Mostly safe (mj_setConst if changing from/to zero)	Safe	MuJoCo Warp does not use the sleep mechanism that makes the zero/non-zero transition special in C MuJoCo.
tendon_armature	Safe with mj_setConst	Safe with set_const_0	Contributes to the mass matrix via smooth.tendon_armature(). Same approach as dof_armature.
actuator_gainprm, actuator_biasprm	Mostly safe (mj_setConst for dampratio actuators)	Safe	mjlab’s dr.pd_gains handles dampratio internally.
site_pos, site_quat	Mostly safe (mj_setConst for tracking cameras/lights)	Safe	Sites are recomputed via FK. No tracking camera concern in typical RL usage.
bvh_aabb, oct_aabb, oct_coeff	Unsafe	Not applicable / not randomized	MuJoCo Warp uses BVH only for rendering, not collision. Octree data (oct_*) is used for SDF collision and should not be modified.

Static-body caveat for geom_pos/geom_quat and body_pos/body_quat

MuJoCo Warp’s forward kinematics skips geoms that are both world-welded (body_weldid == 0) and not descended from a mocap body (body_mocapid[root] == -1). For such geoms, geom_xpos/geom_xmat are computed once during make_data and never updated. Changing geom_pos or the parent body_pos would leave the world-space collision position stale.

In practice this affects only bare <geom> elements placed directly on the <worldbody> in XML (e.g. a ground plane) that are not part of any mjlab entity. All mjlab entities (including fixed-base ones) are auto-wrapped in a mocap body by auto_wrap_fixed_base_mocap, which makes them exempt from the FK skip. The built-in dr functions target named bodies/geoms on entities, so they are always safe.

How geom_size recomputation works

Changing geom_size at runtime requires updating two derived fields that the broadphase reads every step:

• geom_rbound: bounding sphere radius (used for sphere-filter pruning)

• geom_aabb: local axis-aligned bounding box (used for AABB/OBB pruning)

Both are copied from MjModel during model loading and never recomputed by MuJoCo Warp. dr.geom_size handles this by recomputing both fields inline (pure PyTorch, no Warp kernel needed) after writing the new sizes.

The formulas are type-dependent:

Geom type	geom_rbound	geom_aabb half-size
Sphere	s[0]	(s[0], s[0], s[0])
Capsule	s[0] + s[1]	(s[0], s[0], s[0] + s[1])
Cylinder	sqrt(s[0]² + s[1]²)	(s[0], s[0], s[1])
Ellipsoid	max(s[0], s[1], s[2])	(s[0], s[1], s[2])
Box	sqrt(s[0]² + s[1]² + s[2]²)	(s[0], s[1], s[2])

Plane, heightfield, mesh, and SDF geoms are not supported because their bounds come from vertex data or are infinite, not derivable from geom_size.

Fields without dr functions

Added as needed

These continuous model fields could use a standard dr.* function but do not have one yet. They will be added as demand arises.

Category	Field(s)	Notes
Body	body_gravcomp	Gravity compensation weight. Needs set_const_fixed.
Joint / DOF	jnt_margin	Distance threshold for joint-limit detection.
Tendon	tendon_range	Tendon length limits.
	tendon_margin	Distance threshold for tendon-limit detection.
	tendon_lengthspring	Spring rest-length range.
Actuator	actuator_dynprm, actuator_gear, actuator_ctrlrange, actuator_actrange	pd_gains and effort_limits cover common cases.
Material	mat_texrepeat	Continuous per-world field. Material-level entity indexing is now supported (see dr.mat_rgba), but dr.mat_texrepeat is not yet implemented.

Better as custom code

These fields have coupled semantics that make a generic dr.* function more misleading than helpful. For example, solref is interpreted differently depending on the solver type (elliptic vs. direct), solimp has ordering constraints (dmin < dmax, width > 0), and qpos_spring is coupled with qpos0. The right ranges depend on the specific modeling choices. Write a custom event term instead (see Custom Class-Based Event Terms or use @requires_model_fields to handle field expansion automatically).

Category	Field(s)	Notes
Solver parameters	geom_solref, geom_solimp, geom_solmix, jnt_solref, jnt_solimp, dof_solref, dof_solimp, pair_solref, pair_solimp, eq_solref, eq_solimp	Semantics depend on solver type and timestep.
Contact thresholds	geom_margin, geom_gap, pair_margin, pair_gap	Interact with solver parameters above.
Pair overrides	pair_friction, eq_data	Per-pair friction and constraint anchor overrides.
Spring reference	qpos_spring	Coupled with qpos0; randomizing independently is error-prone.

Requires dedicated API

These fields need specialized handling because they are integer/categorical, involve vertex data, or lack the per-world dimension needed for independent per-environment values.

Category	Field(s)	Notes
Material / texture swapping	geom_matid, mat_texid	Integer IDs that need a swapping API, not continuous sampling. Requires material-level entity indexing.
Mesh	mesh_vert, mesh_normal, mesh_face, etc.	Shape variation for manipulation objects. These fields lack the per-world dimension, so per-world variation is not possible with the current expand infrastructure. Heterogeneous-world support is in progress.
Deformable	flex_*	Deformable body parameters for soft-object manipulation. Like mesh fields, most flex_* fields lack the per-world dimension.

Not a DR target

• light_active, light_castshadow, light_type, cam_projection: boolean/integer toggles, not continuous parameters.

• jnt_pos, jnt_axis: structural joint geometry; changing at runtime is fragile and not a standard use case.

• hfield_data, hfield_size: terrain data; use the terrain system instead.

Parameters

The model field functions share three parameters that control randomization: distribution controls how values are sampled from ranges, and operation controls how those sampled values are applied to the model field. (Entity-level functions like dr.pseudo_inertia and dr.pd_gains have their own signatures; see their docstrings for details.)

Distribution

The distribution parameter controls how random values are sampled from the provided ranges. It accepts a built-in string or a dr.Distribution instance for custom sampling logic.

Value	Behavior
"uniform" (default)	Samples uniformly between ranges[0] and ranges[1]
"log_uniform"	Samples in log space, useful for parameters that span orders of magnitude (e.g. torsional friction). Both range values must be > 0.
"gaussian"	ranges is interpreted as (mean, std)

To define a custom distribution, create a dr.Distribution instance. The sample callable receives (lower, upper, shape, device) and returns a tensor. For example, a truncated normal that clamps samples to the given bounds:

import torch
from mjlab.envs.mdp import dr

truncated_normal = dr.Distribution(
    name="truncated_normal",
    sample=lambda lo, hi, shape, device: torch.clamp(
        torch.normal(
            mean=(lo + hi) / 2,
            std=(hi - lo) / 4,  # 95% of samples within bounds
        ).expand(shape),
        min=lo,
        max=hi,
    ),
)

params={"distribution": truncated_normal, "ranges": (0.3, 1.2)}

Operation

The operation parameter controls how the sampled value is applied to the model field. It accepts a built-in string or a dr.Operation instance for custom logic.

Value	Behavior
"abs" (default)	Sets the field to the sampled value directly
"scale"	Multiplies the original default value by the sampled value
"add"	Adds the sampled value to the original default value

For "scale" and "add", the DR engine always applies the random draw to the original default values captured from the compiled MjModel on CPU, not the current values. This prevents accumulation: scaling friction by 2x three times in a row gives 2x the original, not 8x.

To define a custom operation, create a dr.Operation instance. The four fields are:

• name: a human-readable label for error messages.

• initialize: creates the result tensor that gets filled axis by axis with sampled values. For example, scale starts from ones so that unsampled axes multiply by 1 (no change), while add starts from zeros.

• combine: takes (base_values, random_values) and returns the final tensor written into the model field. For example, scale returns base * random and add returns base + random.

• uses_defaults: when True, the base values are the compile-time defaults (preventing accumulation across repeated calls). When False, the base values are the current model values.

As an example, the built-in add always adds to the default values, so repeated calls reset rather than drift. A custom drift operation that adds to the current values is useful for mode="interval" events where parameters should slowly wander over time:

import torch
from mjlab.envs.mdp import dr

drift = dr.Operation(
    name="drift",
    initialize=torch.zeros_like,
    combine=torch.add,
    uses_defaults=False,  # read current values, not defaults
)

# Friction slowly wanders each interval step.
friction_drift: EventTermCfg = EventTermCfg(
    mode="interval",
    interval_range_s=(0.5, 1.0),
    func=dr.geom_friction,
    params={
        "asset_cfg": SceneEntityCfg("robot", geom_names=[".*_foot.*"]),
        "ranges": (-0.01, 0.01),
        "operation": drift,
    },
)

Axis selection

Many model fields are multi-dimensional. For example, geom_friction has three components [tangential, torsional, rolling] and body_pos has three spatial axes [x, y, z]. Specific axes can be targeted using the axes parameter or by passing a dict for ranges.

For geom_friction with condim=3 (standard frictional contact), only axis 0 (tangential) affects contact behavior. See the MuJoCo contact documentation for details on condim and friction coefficients.

# Tangential friction only (this is the default for geom_friction)
params={"ranges": {0: (0.3, 1.2)}}

# Tangential + torsional (torsional matters for condim >= 4)
params={"ranges": {0: (0.5, 1.0), 1: (0.001, 0.01)}}

# X and Y position with the same range
params={"axes": [0, 1], "ranges": (-0.1, 0.1)}

Per-component string-keyed ranges

Different ranges can be applied to different entities in a single call using regex patterns as dict keys:

dr.joint_damping(
    env, env_ids,
    ranges={".*knee.*": (0.5, 1.5), ".*hip.*": (0.8, 1.2)},
    operation="scale",
    asset_cfg=SceneEntityCfg("robot", joint_names=[".*"]),
)

Each pattern is matched against the entity names (joint names, geom names, etc.) and the corresponding range is applied to the matching components. In this example, knee joints get their damping scaled by 0.5x to 1.5x while hip joints get a tighter 0.8x to 1.2x range, all in a single event term.

Examples

Friction (reset)

foot_friction: EventTermCfg = EventTermCfg(
    mode="reset",
    func=dr.geom_friction,
    params={
        "asset_cfg": SceneEntityCfg("robot", geom_names=[".*_foot.*"]),
        "ranges": (0.3, 1.2),
        "operation": "abs",
    },
)

Note

Give the robot’s collision geoms higher priority than terrain (geom priority defaults to 0). Then only robot friction. MuJoCo will use the higher-priority geom’s friction in (robot, terrain) contacts.

from mjlab.utils.spec_config import CollisionCfg

robot_collision = CollisionCfg(
    geom_names_expr=[".*_foot.*"],
    priority=1,
    friction=(0.6,),
    condim=3,
)

Joint Offset (startup)

Randomize default joint positions to simulate joint offset calibration errors:

joint_offset: EventTermCfg = EventTermCfg(
    mode="startup",
    func=dr.joint_default_pos,
    params={
        "asset_cfg": SceneEntityCfg("robot", joint_names=[".*"]),
        "ranges": (-0.01, 0.01),
        "operation": "add",
    },
)

Center of Mass (COM) (startup)

com: EventTermCfg = EventTermCfg(
    mode="startup",
    func=dr.body_com_offset,
    params={
        "asset_cfg": SceneEntityCfg("robot", body_names=["torso"]),
        "ranges": {0: (-0.02, 0.02), 1: (-0.02, 0.02)},
        "operation": "add",
    },
)

Common Pitfalls

dr.body_mass does not scale inertia

Scaling mass without scaling inertia is only physically correct when modelling a point mass added at the COM (which contributes zero rotational inertia). For the common DR use case, simulating manufacturing variation or uncertainty in link density, mass and inertia should scale together. Use dr.pseudo_inertia() with alpha_range instead:

# Wrong: mass changes, inertia stays fixed (physically inconsistent).
EventTermCfg(func=dr.body_mass, params={"ranges": (0.8, 1.2)})

# Correct: mass and inertia both scale by e^{2alpha} (uniform density change).
EventTermCfg(func=dr.pseudo_inertia, params={"alpha_range": (-0.1, 0.1)})

dr.body_mass emits a UserWarning at runtime to flag this.

*_quat ranges are in radians, not degrees

All quaternion randomization functions (dr.geom_quat(), dr.body_quat(), dr.site_quat(), dr.cam_quat()) accept roll/pitch/yaw ranges in radians. Passing degree values silently produces rotations roughly 57x larger than intended. There is no runtime check.

*_quat perturbations are relative to the default, not the current value

The sampled RPY perturbation is composed with the default quaternion, not the current one. This is consistent with the no-accumulation guarantee of all other dr functions, but it means repeated calls do not stack rotations. Each call independently samples a new perturbation from the default orientation.

dr.geom_friction only randomizes tangential friction by default

The default axis is 0 (tangential friction). Axes 1 (torsional) and 2 (rolling) only affect contacts with condim >= 4, so the default is correct for standard condim=3 contacts. If the model uses high-dimensional contacts, pass axes=[0, 1, 2] explicitly.

dr.geom_size raises on non-primitive geoms

dr.geom_size() only supports primitive geom types (sphere, capsule, ellipsoid, cylinder, box) because broadphase bounds for mesh, plane, and heightfield geoms cannot be recomputed analytically. Selecting a non-primitive geom raises a ValueError. Filter the SceneEntityCfg to primitive geoms only:

# Select only primitive geoms by name pattern.
geom_cfg = SceneEntityCfg("robot", geom_names=(".*sphere.*", ".*box.*"))

How It Works Under the Hood

Understanding the internals helps when writing custom DR terms or debugging unexpected behavior.

Per-world storage

MuJoCo Warp batches thousands of worlds into a single simulation. To save memory, model arrays like geom_friction are stored once with shape (1, ngeom, 3) and a stride of 0 along the first (world) dimension. GPU kernels index into these arrays with worldid % arr.shape[0]. When shape[0] is 1, every world reads the same row, so they all share identical model parameters.

On the PyTorch side, mjlab wraps these stride-0 arrays using torch.expand so they appear to have shape (num_envs, ngeom, 3) while still backed by a single row of memory. Indexing with tensor[env_id] makes it look like each world has its own data, but writes to any world affect all of them because they all point to the same underlying memory.

To give each world independent values, the underlying Warp array is expanded from shape (1, N) to (num_worlds, N) with real per-world memory and normal strides. sim.expand_model_fields() allocates a new array, copies the shared data into each world’s row, and replaces the old array on the model. After expansion, writes to one world no longer affect others and each world can have its own friction, mass, or damping values.

Each dr function declares which fields it needs via the @requires_model_fields decorator, and the EventManager collects these at startup so expansion happens automatically. Custom DR terms that directly modify model arrays must ensure those arrays have been expanded. Either decorate the function with @requires_model_fields or call sim.expand_model_fields() manually.

Note

Expanding a field allocates new GPU memory and invalidates any captured CUDA graph because the graph holds pointers to the old arrays. mjlab recreates the graph automatically after expansion. This is a one-time cost at environment startup, not per-episode.

Why not just recompile the model?

The cleanest way to get per-world variation would be to modify the MjSpec for each world, compile each one into its own MjModel, and transfer them all to the GPU. That would give perfectly consistent derived quantities for free because mj_setConst runs during compilation.

mjlab does not do this for two reasons:

1. Cost. Compiling an MjSpec is a CPU operation. Doing it once per world on every episode reset would be far too slow for thousands of environments.

2. Architecture. MuJoCo Warp expects a single Model shared across all worlds. There is no mechanism to load N independent models into one simulation.

Instead, mjlab modifies the expanded arrays in place on the GPU and selectively recompute only the derived quantities that depend on what changed. This is what the RecomputeLevel system handles.

Recomputation of derived fields

Some model fields are derived from others. For example, body_subtreemass (the total mass of a body and all its descendants) depends on body_mass. Changing body_mass without updating body_subtreemass, the constraint solver will use stale impedance values and the simulation will be subtly wrong.

In C MuJoCo, the solution is to call mj_setConst after modifying model parameters at runtime. MuJoCo Warp provides an equivalent set of functions (set_const, set_const_0, set_const_fixed) that run on the GPU and operate on all worlds in parallel. mjlab calls these automatically.

The three recomputation levels, from cheapest to most expensive:

Level	What it recomputes	When to use
set_const_fixed	body_subtreemass	After changing body_gravcomp
set_const_0	dof_invweight0, body_invweight0, tendon_length0, tendon_invweight0, plus camera and light references	After changing dof_armature, tendon_armature, body_inertia, body_pos, body_quat, or qpos0
set_const	Everything above	After changing body_mass or body_ipos (center of mass)

The built-in dr functions already declare the correct level. When the EventManager fires multiple DR terms in a single apply() call, it tracks the strongest level among them and calls sim.recompute_constants() once at the end. Manual calls are unnecessary unless writing custom DR logic.

Fields that only affect contact or joint behavior directly (geom_friction, dof_damping, dof_frictionloss, etc.) have no derived quantities and need no recomputation.

Note

mjlab captures sim.step(), sim.forward(), sim.reset(), and sim.sense() as individual CUDA graphs for performance. All event manager logic, including recompute_constants, runs as regular Python between these graph replays, so it will not break graph capture.

That said, set_const is expensive: it runs forward kinematics, the composite rigid body algorithm, and mass matrix factorization across all worlds. Calling it every step via an interval event would add significant overhead. In practice, fields that need recomputation (body_mass, body_com_offset, joint_armature, etc.) are best randomized with startup or reset modes. Fields that need no recomputation (geom_friction, dof_damping, etc.) are cheap to randomize at any frequency.

Custom Class-Based Event Terms

Custom event terms can also use classes instead of functions. This is useful for event terms that need to maintain state or perform initialization logic:

class RandomizeTerrainFriction:
    """Custom event term that randomizes terrain friction."""

    def __init__(self, cfg, env):
        # Find the terrain geom index during initialization
        self._terrain_idx = None
        for idx, geom in enumerate(env.scene.spec.geoms):
            if geom.name == "terrain":
                self._terrain_idx = idx

        if self._terrain_idx is None:
            raise ValueError("Terrain geom not found in the model.")

    def __call__(self, env, env_ids, ranges):
        """Called each time the event is triggered."""
        from mjlab.utils.math import sample_uniform
        env.sim.model.geom_friction[env_ids, self._terrain_idx, 0] = (
            sample_uniform(ranges[0], ranges[1], len(env_ids), env.device)
        )


# Register in the environment config.
terrain_friction: EventTermCfg = EventTermCfg(
    mode="reset",
    func=RandomizeTerrainFriction,
    params={"ranges": (0.3, 1.2)},
)

Visualizing DR Changes

Both viewers reflect DR changes, but with different coverage.

Native viewer

The native viewer syncs per-world model fields from the GPU to a local MjModel before each render. All of MuJoCo’s built-in visualization toggles then work correctly against the randomized model:

• Geom appearance (geom_rgba, geom_size, geom_pos, geom_quat)

• Material color (mat_rgba): tints textured surfaces

• Body and site poses (body_pos, body_quat, body_ipos, site_pos, site_quat)

• Inertia (body_inertia, body_iquat, body_mass): press I to toggle inertia boxes

• Camera parameters (cam_pos, cam_quat, cam_fovy, cam_intrinsic): press Q to toggle camera frustums

• Lights (light_pos, light_dir)

Cube color (dr.geom_rgba), cube size (dr.geom_size), and link 2/3 orientations (dr.body_quat) randomized each episode reset. Broadphase bounds are recomputed automatically after size changes.

dr.pseudo_inertia with alpha_range=(-0.5, 0.5) on links 2 and 3. The inertia ellipsoids resize each episode reset while other links remain unchanged.

Note

cam_fovy has no effect on cameras that use intrinsic parameters (sensorsize / focal set in XML). This applies to both rendered images and the frustum visualization. MuJoCo computes the projection from cam_intrinsic and cam_sensorsize instead. Use dr.cam_intrinsic to randomize the field of view for such cameras. See the MuJoCo camera documentation for details on how intrinsic parameters interact with fovy.

Viser

Camera frustums and body poses are always current because viser reads world-space positions directly from GPU simulation data (cam_xpos, body_xpos) every frame.

Note

geom_rgba and geom_size DR are not reflected in viser. Geom colors and sizes are baked into the scene’s GLB meshes at construction time. The underlying viser API (add_batched_meshes_simple) supports per-instance color updates via batched_colors, but this requires routing color-only geoms through a different handle type than the current add_batched_meshes_trimesh path. Deferred for a future update.

Migrating from Isaac Lab

Isaac Lab exposes explicit friction combination modes (multiply, average, min, max). MuJoCo instead uses priority-based selection: if one contacting geom has higher priority, its friction is used. Otherwise the element-wise maximum is used. See the MuJoCo contact documentation for details.
