Terrain

The terrain is the shared ground surface for all environments in a scene. mjlab supports two modes: a flat ground plane for tasks that do not need varying terrain, and a procedural terrain generator that assembles a grid of sub-terrain patches with configurable difficulty. Procedural terrain is particularly useful for training locomotion policies, where a curriculum of increasing ground difficulty drives robust walking and climbing behaviors.

Terrain is configured through TerrainEntityCfg and passed to the scene via the terrain field of SceneCfg. See Scene for how the terrain integrates with the rest of the scene.

Flat terrain

The default mode. A single ground plane modeled as a MuJoCo plane geom with no procedural geometry. Environments are arranged in a regular grid with spacing controlled by env_spacing on SceneCfg.

from mjlab.terrains import TerrainEntityCfg

terrain = TerrainEntityCfg(terrain_type="plane")

Procedural terrain

For tasks that benefit from terrain variety (locomotion, navigation), TerrainGeneratorCfg assembles a rectangular grid of sub-terrain patches. Each patch is generated from a SubTerrainCfg that defines the geometry and how it scales with difficulty.

from mjlab.terrains import TerrainEntityCfg
from mjlab.terrains.terrain_generator import TerrainGeneratorCfg
import mjlab.terrains as terrain_gen

terrain = TerrainEntityCfg(
    terrain_type="generator",
    terrain_generator=TerrainGeneratorCfg(
        size=(8.0, 8.0),
        num_rows=10,
        border_width=20.0,
        curriculum=True,
        sub_terrains={
            "flat": terrain_gen.BoxFlatTerrainCfg(proportion=0.2),
            "stairs": terrain_gen.BoxPyramidStairsTerrainCfg(
                proportion=0.4,
                step_height_range=(0.0, 0.15),
                step_width=0.3,
                platform_width=2.0,
            ),
            "rough": terrain_gen.HfRandomUniformTerrainCfg(
                proportion=0.4,
                noise_range=(0.02, 0.10),
                noise_step=0.02,
            ),
        },
    ),
    max_init_terrain_level=5,
)

The generator creates a grid of patches sized num_rows by either num_cols (random mode) or len(sub_terrains) (curriculum mode, where num_cols is ignored). The sub_terrains dictionary maps names to SubTerrainCfg instances; each sub-terrain’s proportion controls robot spawning distribution across columns in curriculum mode, or per-patch sampling probability in random mode.

Grid layout

Two generation modes control how terrain types are distributed across the grid:

Curriculum mode (curriculum=True). Each terrain type gets exactly one column; the generator uses len(sub_terrains) columns regardless of num_cols. All patches in a column share the same terrain type, and difficulty increases from row 0 (easiest) to row num_rows - 1 (hardest). The proportion field controls how robots are distributed across columns at spawn time, not column count. This structured layout is what enables the curriculum system to advance environments to harder rows as performance improves.

Random mode (curriculum=False). Every patch independently samples a terrain type weighted by proportion and a difficulty from difficulty_range. num_cols is honored. This provides maximum variety but no structured difficulty progression.

The difficulty parameter

Each sub-terrain’s generation function receives a difficulty value that linearly interpolates the terrain’s configurable ranges. For example, a BoxPyramidStairsTerrainCfg with step_height_range=(0.0, 0.2) produces flat ground at difficulty 0 and 20 cm steps at difficulty 1.

In curriculum mode, difficulty is determined by the row: difficulty = lower + (upper - lower) * row / max(num_rows - 1, 1), where (lower, upper) = difficulty_range. Row 0 is exactly lower, row num_rows - 1 is exactly upper, and intermediate rows are evenly spaced between them. All columns in a given row share the same difficulty scalar; the visible variation across columns comes from each sub-terrain type generating different geometry at the same difficulty.

Note

With num_rows=1 and curriculum=True, every patch is generated at difficulty = lower (the easiest configured difficulty). Use curriculum=False if you want a single grid of randomly sampled difficulties instead.

In random mode, difficulty is sampled uniformly from difficulty_range independently for every patch.

Sub-terrain types

mjlab provides two families of sub-terrain types: primitive terrains built from box geoms, and heightfield terrains built from continuous elevation grids. All types inherit from SubTerrainCfg and accept a proportion weight and optional flat_patch_sampling configuration.

Primitive terrains

Procedural patches built entirely from box geoms. The discrete geometry makes them well suited for staircases, stepping stones, and other structured obstacles. Most primitive types share common parameters: platform_width (central flat area), border_width (flat margin), and one or more difficulty-scaled ranges.

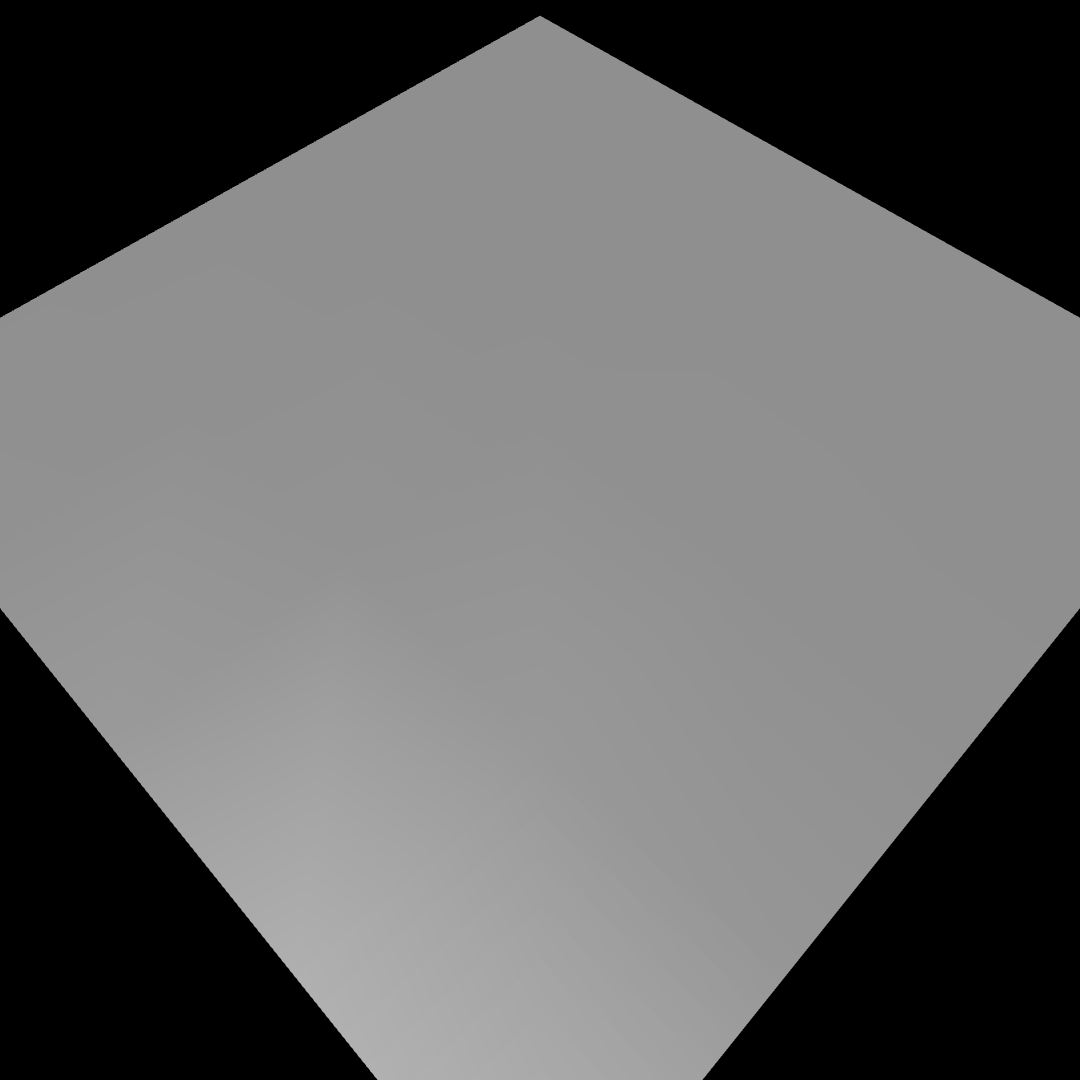

Flat

Flat box patch. Useful as an easy baseline in a curriculum grid.

Pyramid Stairs

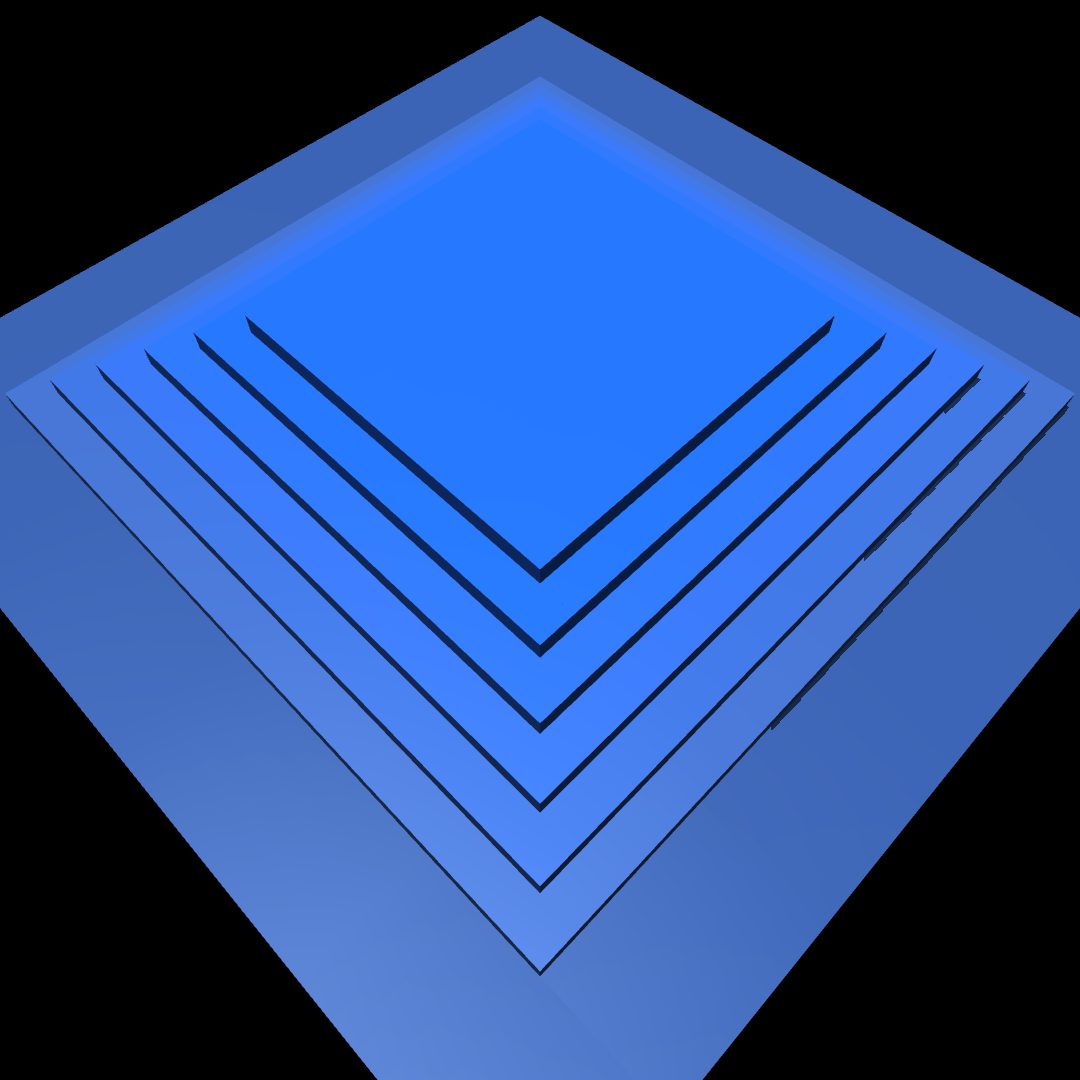

Pyramid staircase with steps descending inward toward a central platform.

Inverted Pyramid Stairs

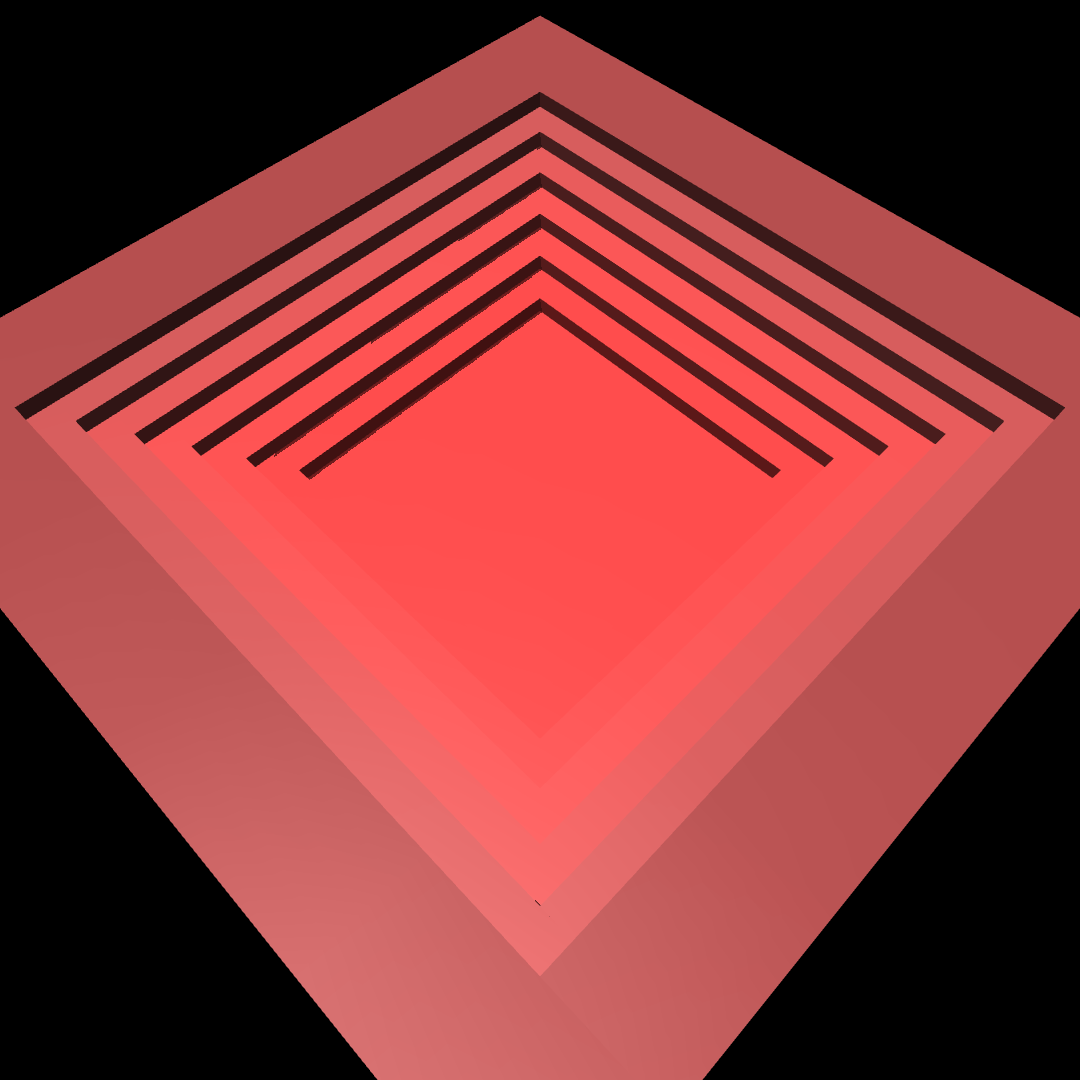

Inverted pyramid with steps ascending from the outside inward.

Random Stairs

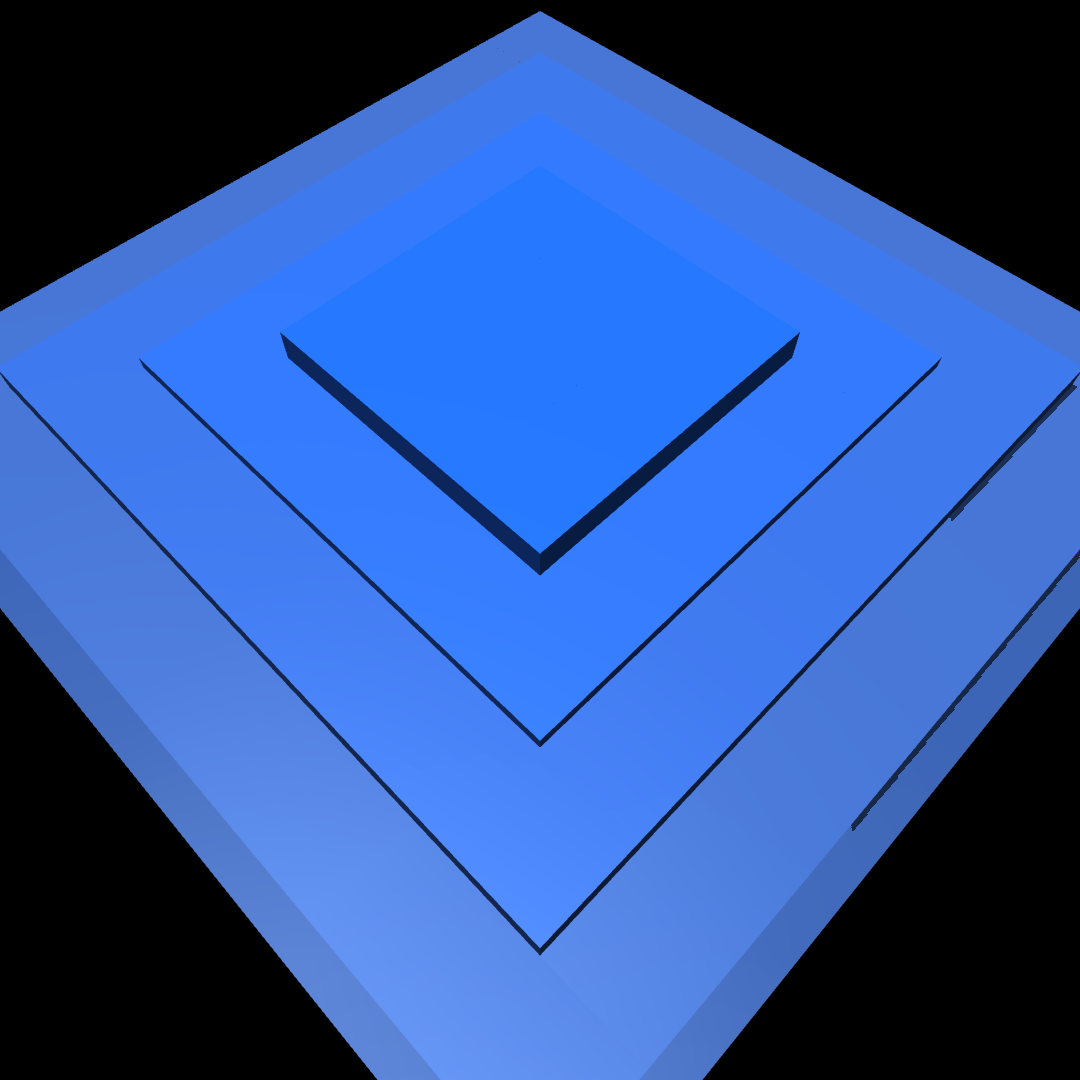

Pyramid staircase with random per-step heights.

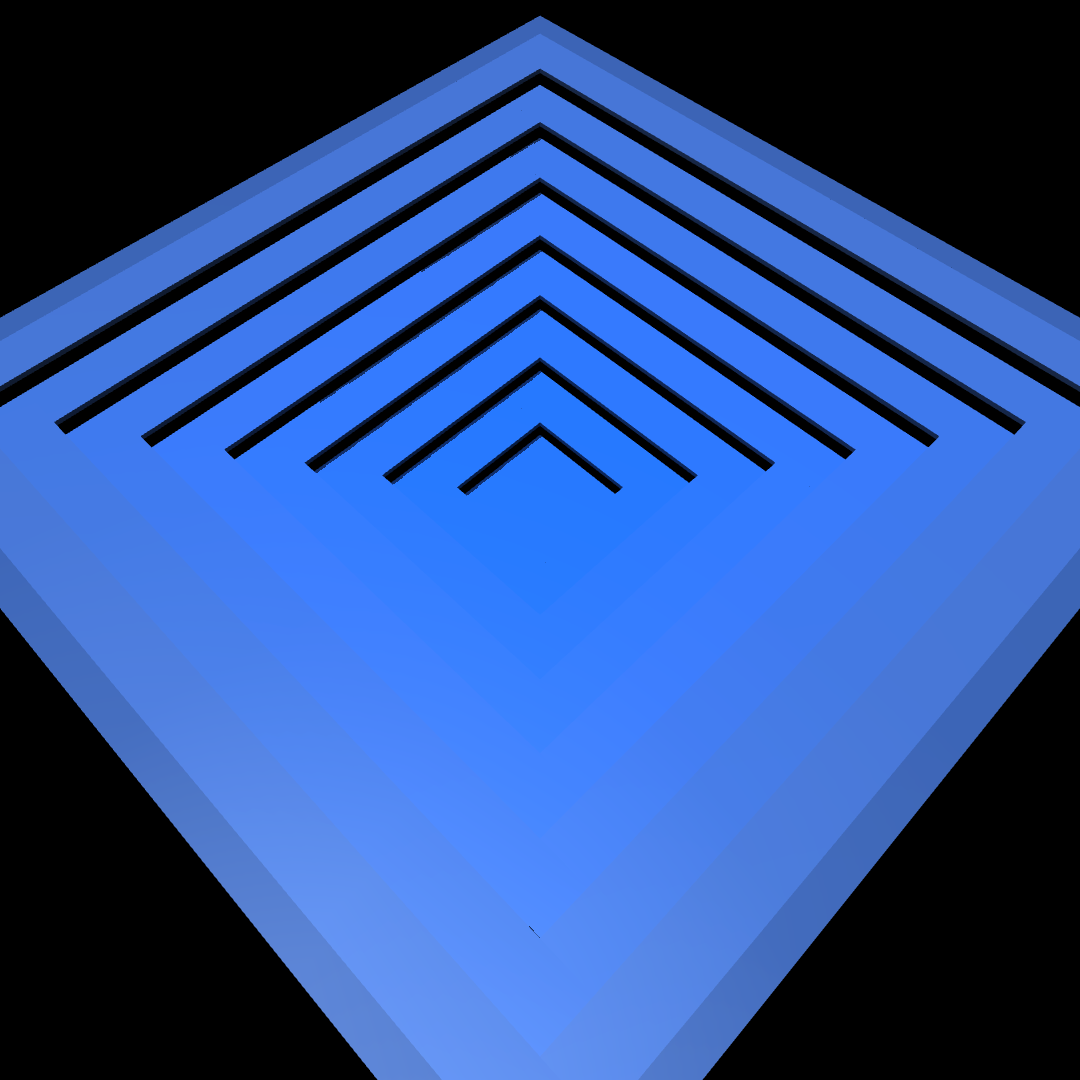

Open Stairs

Concentric step rings. Can be a bowl or pyramid depending on the inverted flag.

Random Grid

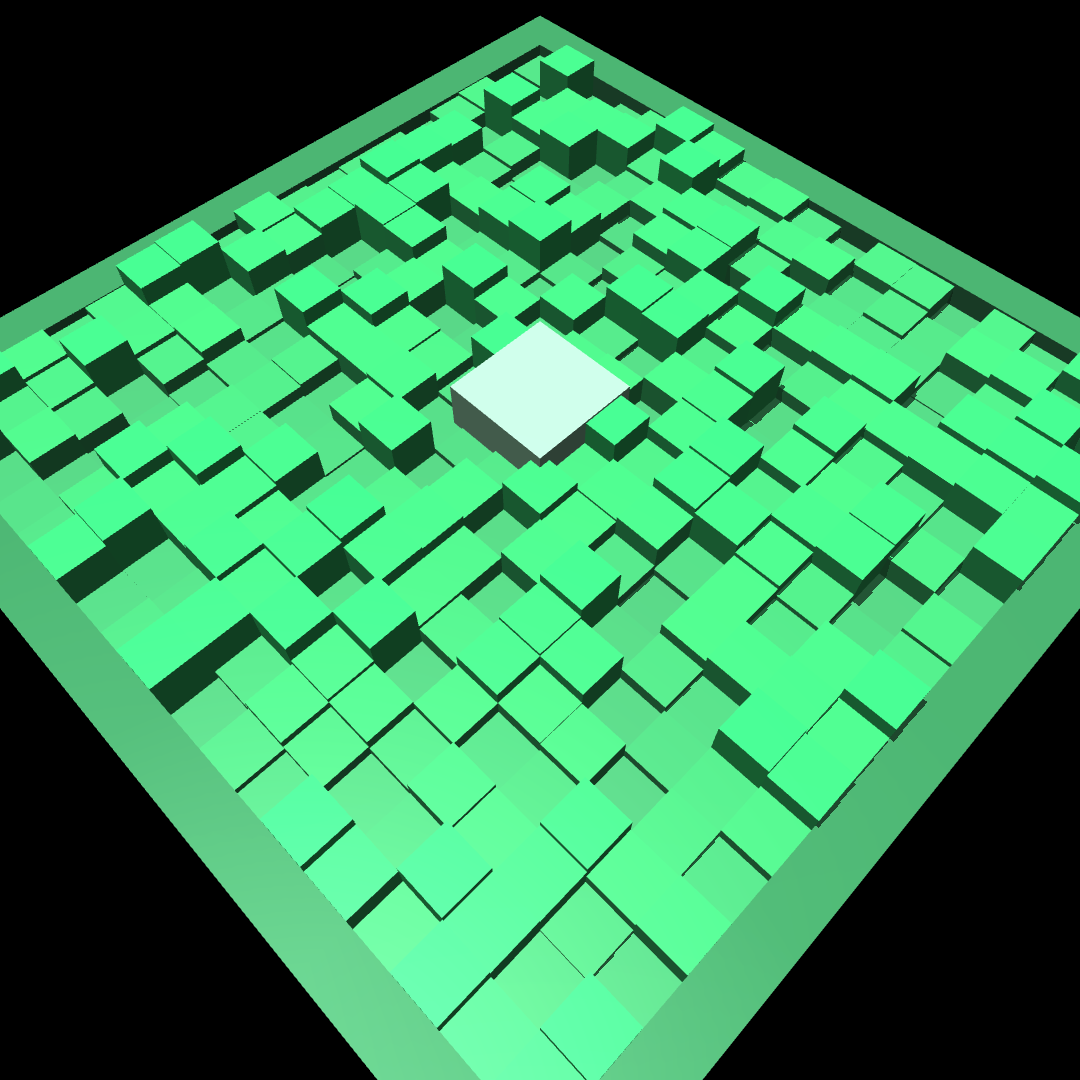

Grid of boxes at randomly sampled heights.

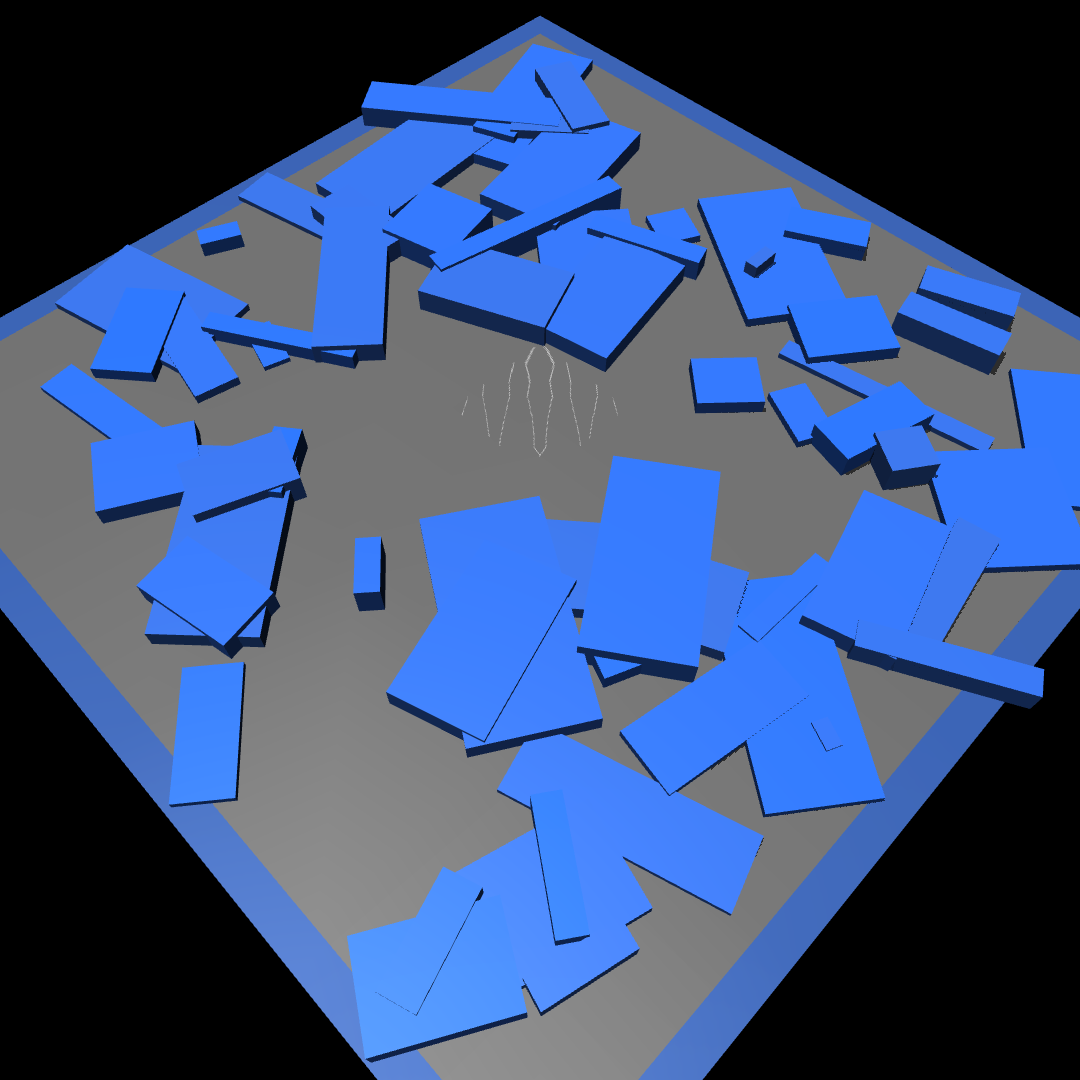

Random Spread

Randomly positioned and rotated boxes of varying sizes scattered across the patch.

Stepping Stones

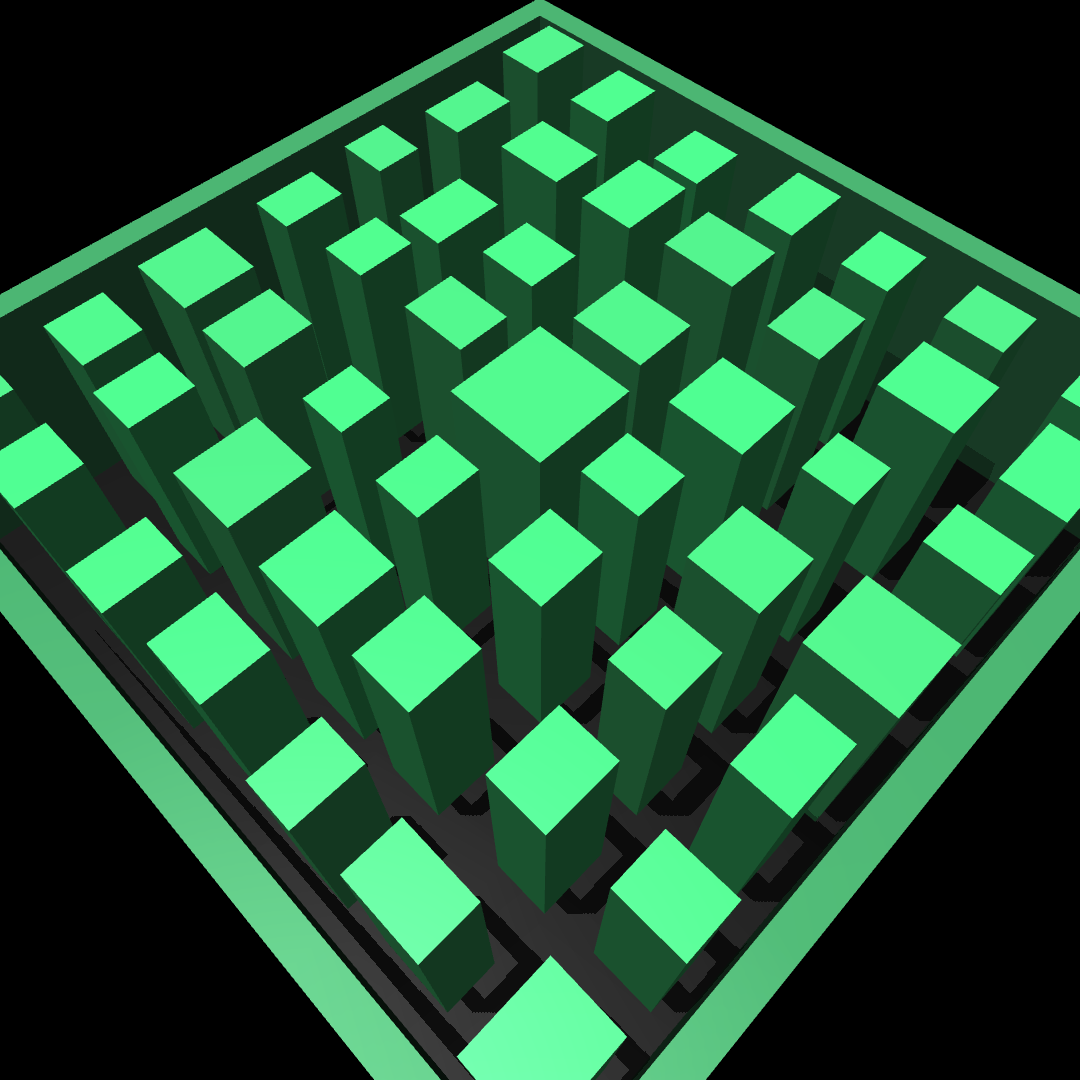

Stepping-stone columns rising from a deep pit.

Narrow Beams

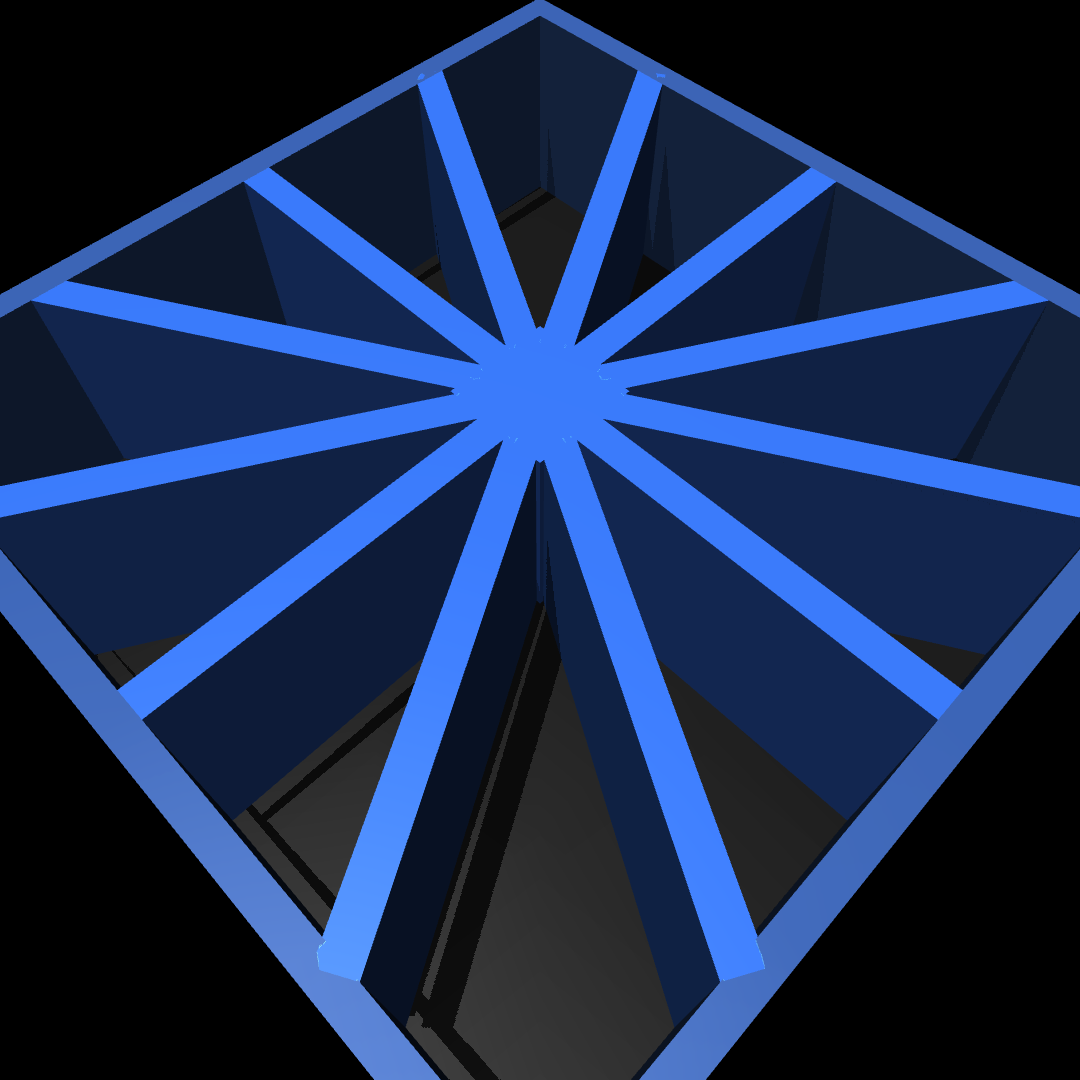

Radial beams extending outward from a central platform above a pit.

Tilted Grid

Grid of independently tilted mesh tiles.

Nested Rings

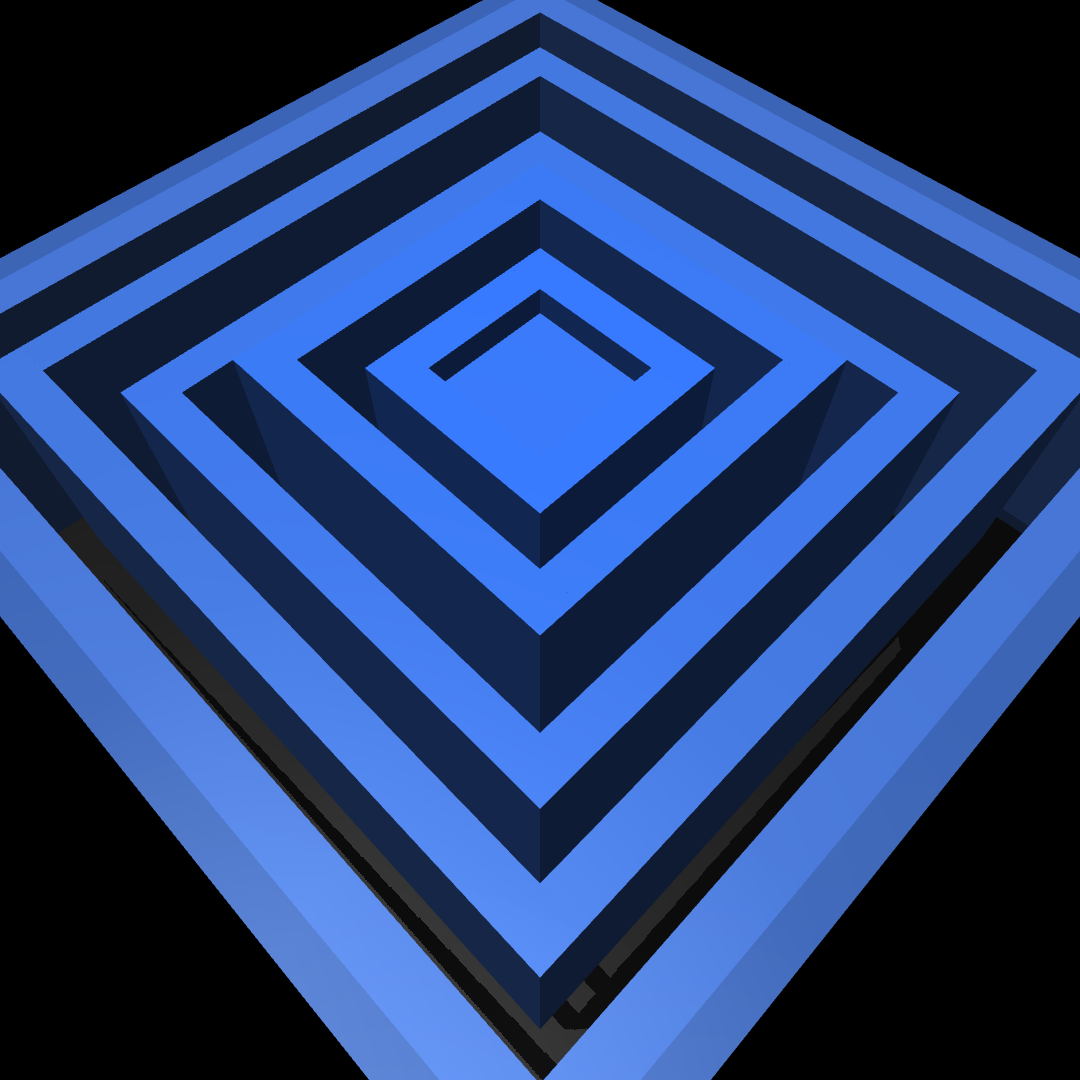

Concentric ring structures at random heights.

Heightfield terrains

Continuous terrain profiles built from MuJoCo heightfield geoms. The surface is a dense grid of elevation samples, producing smooth slopes and undulating ground that box geoms cannot represent.

Pyramid Slope

Smooth pyramid slope with a flat platform at the peak. inverted=True places the platform at the bottom.

Random Uniform

Random uniform noise, optionally downsampled and interpolated to control feature size.

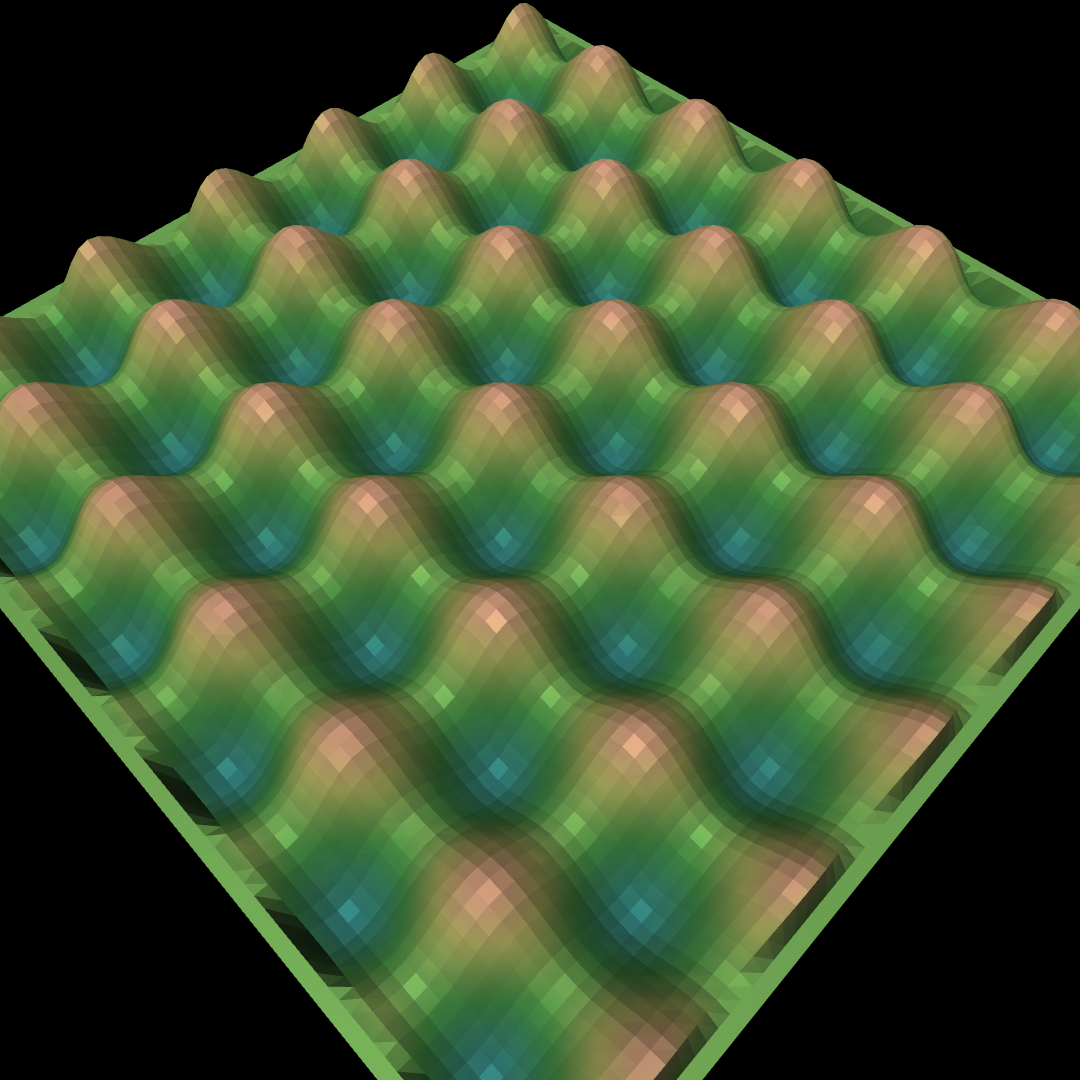

Wave

Sinusoidal wave profile.

Discrete Obstacles

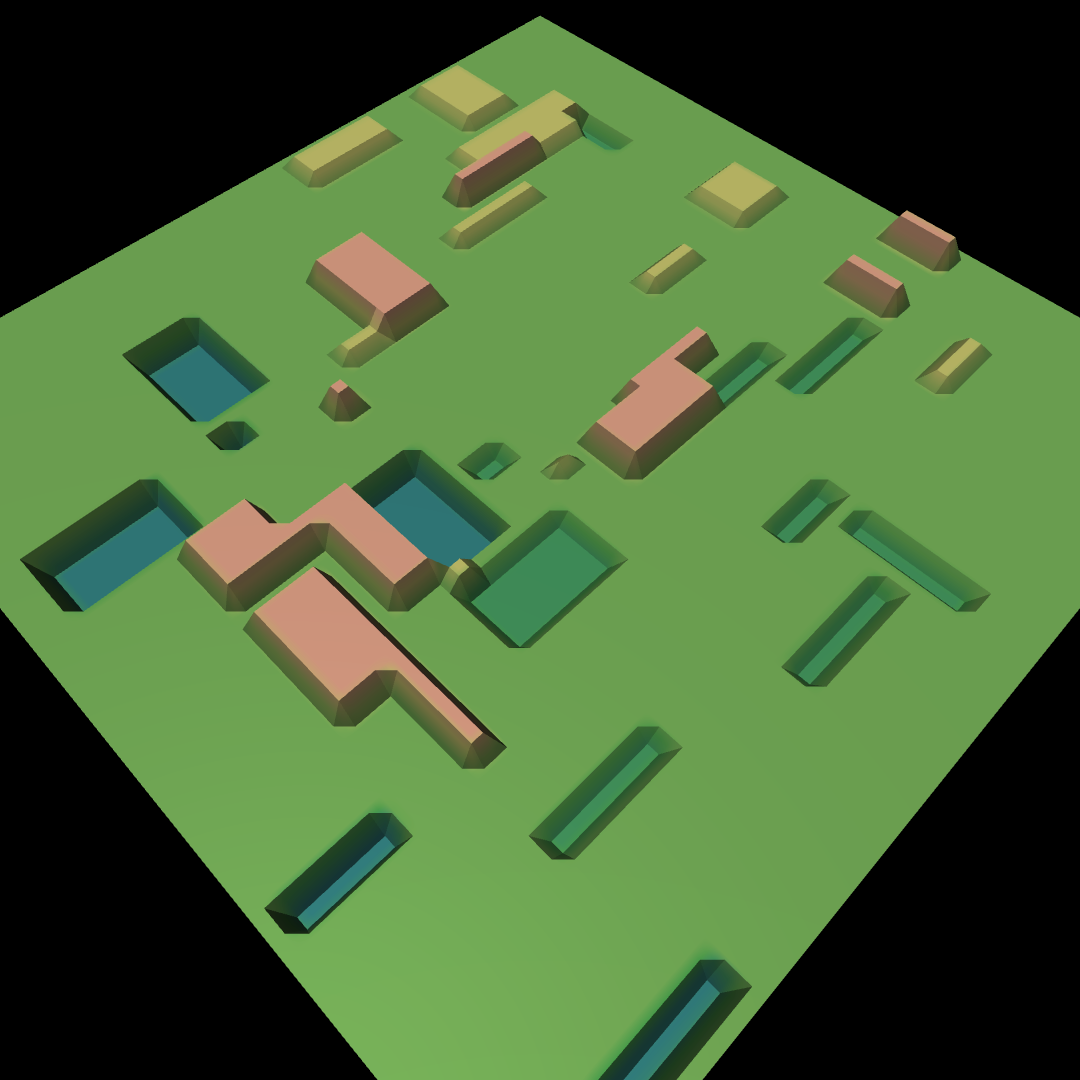

Rectangular bumps and pits scattered across a flat base.

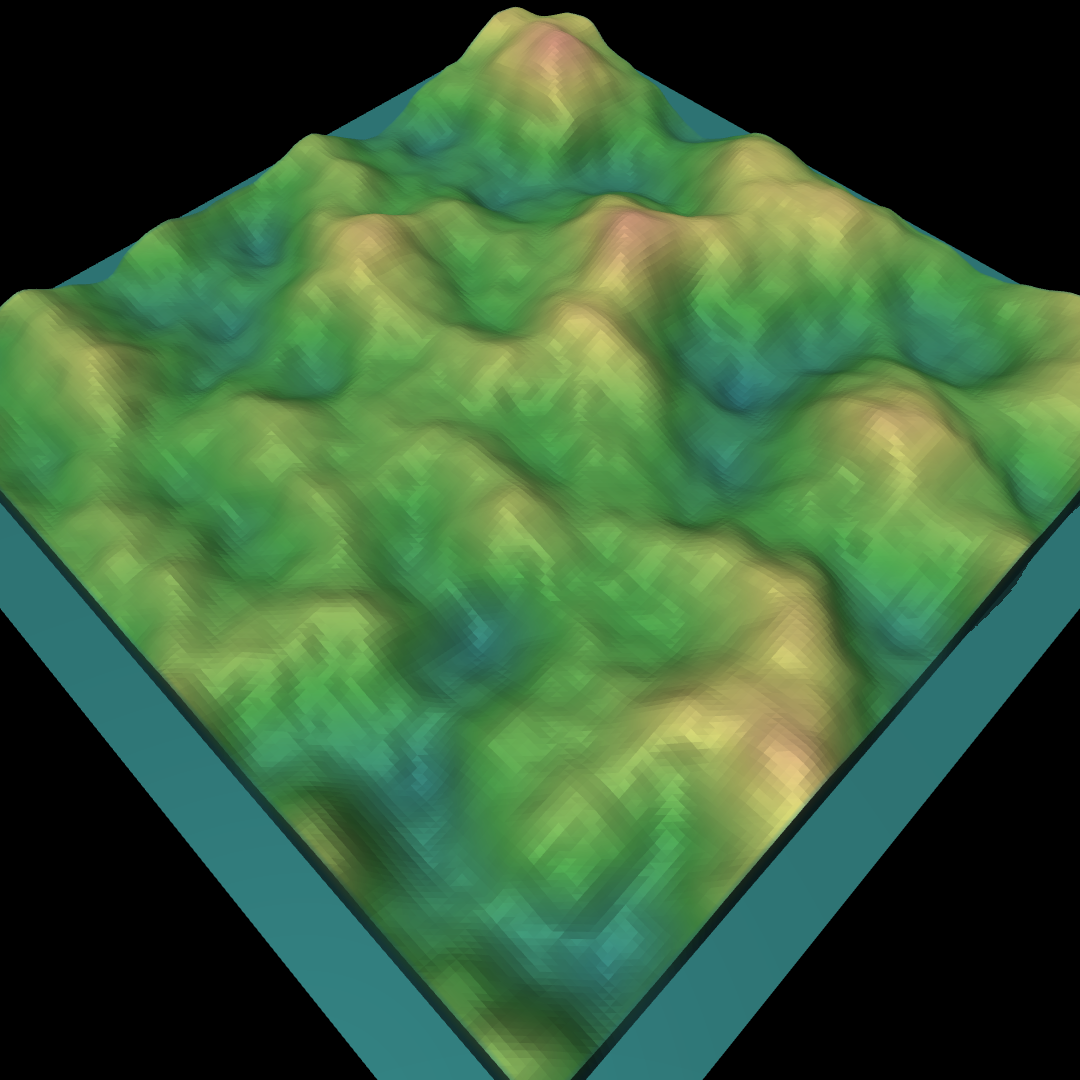

Perlin Noise

Fractal Perlin noise producing natural terrain undulation.

Preset configurations

mjlab ships three ready-made TerrainGeneratorCfg presets in mjlab.terrains.config:

ROUGH_TERRAINS_CFG

A 10x20 random-mode grid with seven terrain types (flat, stairs, inverted stairs, slopes, inverted slopes, random rough, waves). Designed for locomotion training with a moderate difficulty range. Set curriculum=True via dataclasses.replace to use it as a curriculum grid (one column per terrain type).

STAIRS_TERRAINS_CFG

A 10-row curriculum grid focused on stair traversal: flat plus three pyramid-stair variants of increasing difficulty.

ALL_TERRAINS_CFG

A 10-row random-mode grid covering all available terrain types at equal proportion. Useful for training on maximum terrain variety.

Both can be used directly or customized with dataclasses.replace():

from dataclasses import replace
from mjlab.terrains.config import ROUGH_TERRAINS_CFG

my_terrains = replace(ROUGH_TERRAINS_CFG, num_rows=5)

Terrain curriculum

In curriculum mode the terrain grid provides a natural axis for progressive training: rows represent difficulty levels, and the curriculum system moves environments up or down the grid based on performance. See Curriculum for full details on configuring curriculum terms.

The key concepts:

• Each environment tracks a terrain_level (row index) and terrain_type (column index).

• TerrainEntityCfg.max_init_terrain_level controls how high environments can start at their first reset. Setting it to 5 means environments begin on rows 0 through 5.

• The built-in terrain_levels_vel curriculum term promotes environments that track commanded velocity well and demotes environments that fall or fail to make progress.

• When an environment is promoted past the hardest row, it is randomly reassigned to any row in [0, num_rows) to prevent the policy from collapsing to a single difficulty level.

Flat patch detection

Heightfield terrains can pre-compute flat regions on their surface during generation. These flat patches are useful as safe spawn points for tasks that require the robot to start on level ground, even on otherwise rough terrain.

Flat patch detection is configured per sub-terrain via the flat_patch_sampling field on SubTerrainCfg:

from mjlab.terrains.terrain_generator import FlatPatchSamplingCfg

rough = terrain_gen.HfRandomUniformTerrainCfg(
    proportion=0.5,
    noise_range=(0.02, 0.10),
    flat_patch_sampling={
        "spawn": FlatPatchSamplingCfg(
            num_patches=10,
            patch_radius=0.5,
            max_height_diff=0.05,
        ),
    },
)

The detection algorithm uses morphological filtering to find circular regions where height variation stays within max_height_diff. Detected patches are accessible at runtime through scene.terrain.flat_patches["spawn"].

To spawn robots on detected patches instead of at the sub-terrain center, use reset_root_state_from_flat_patches as the reset event term. See Events for details.

Note

Only heightfield (Hf*) terrains support flat patch detection. Primitive (Box*) terrains do not have heightfield data to analyze. If any sub-terrain in the grid configures flat_patch_sampling, the flat patches array is allocated for all cells; sub-terrains without patches have their slots filled with the sub-terrain’s spawn origin so that the reset event always receives valid positions.

Debug visualization

The terrain entity adds debug sites to three geom groups that can be toggled in the MuJoCo native viewer or Viser viewer:

• Group 3: flat patch sites (yellow boxes marking safe spawn regions)

• Group 4: environment origin sites (green spheres at each environment’s position)

• Group 5: terrain origin sites (blue spheres at each sub-terrain patch center)

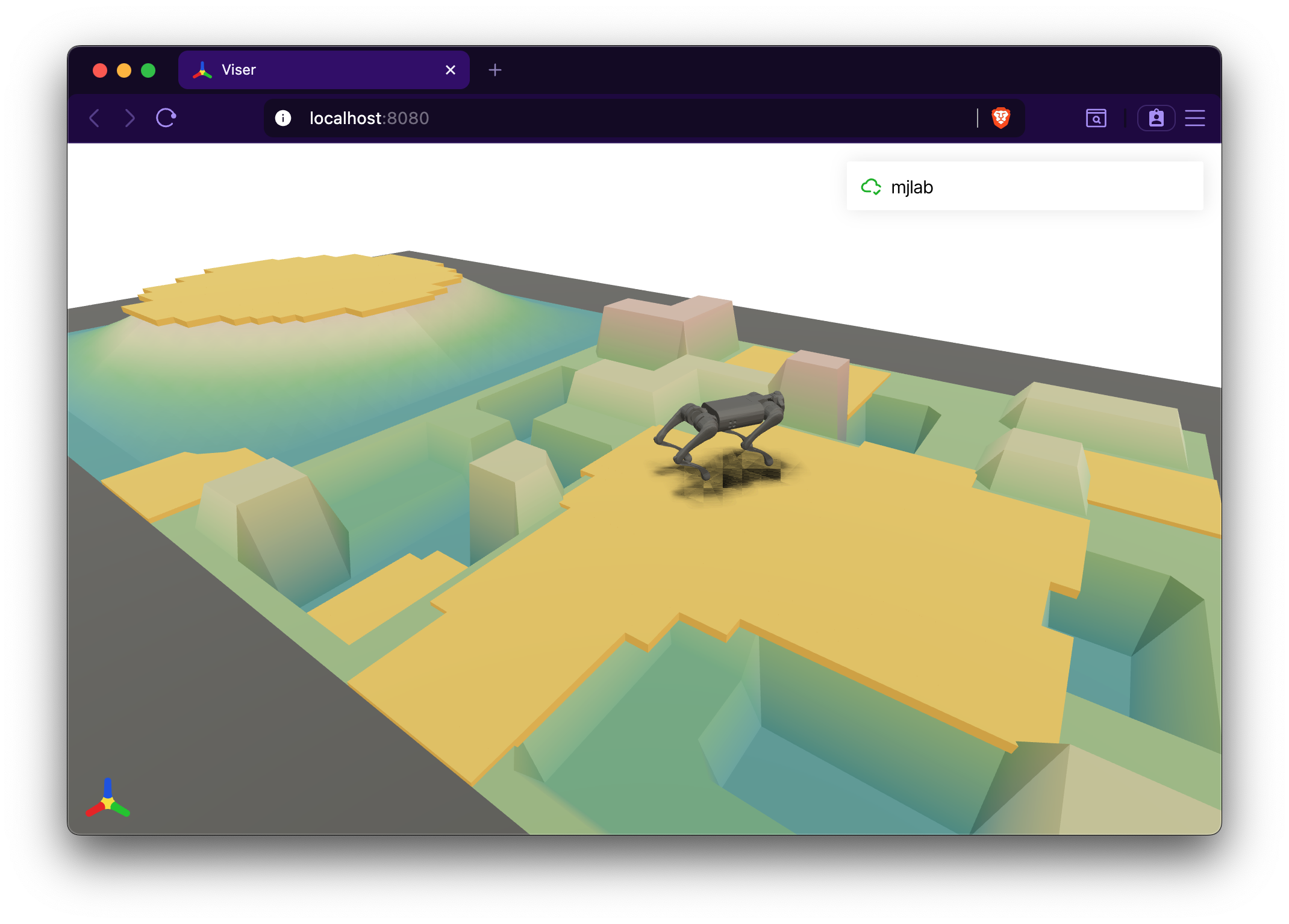

Flat patches (group 3) overlaid on a procedural terrain grid in the Viser viewer.
